GIB SAR

Real-time 3D tracking with fast installation

  • Real-time 3D longitude & latitude tracking in D-GPS mode with metric & depth accuracy
  • Very wide tracking area: up to 2 × 2 Nm
  • Fast installation and deployment (< 1 h)
  • No calibration
  • High repetition rate and real-time Quality Control
  • Long autonomy (many days)
Underwater positioning of backboxes or distressed submarine

GIB SAR

Real-time 3D tracking with fast installation

Underwater positioning of backboxes or distressed submarine
  • Real-time 3D longitude & latitude tracking in D-GPS mode with metric & depth accuracy
  • Very wide tracking area: up to 2 × 2 Nm
  • Fast installation and deployment (< 1 h)
  • No calibration
  • High repetition rate and real-time Quality Control
  • Long autonomy (many days)

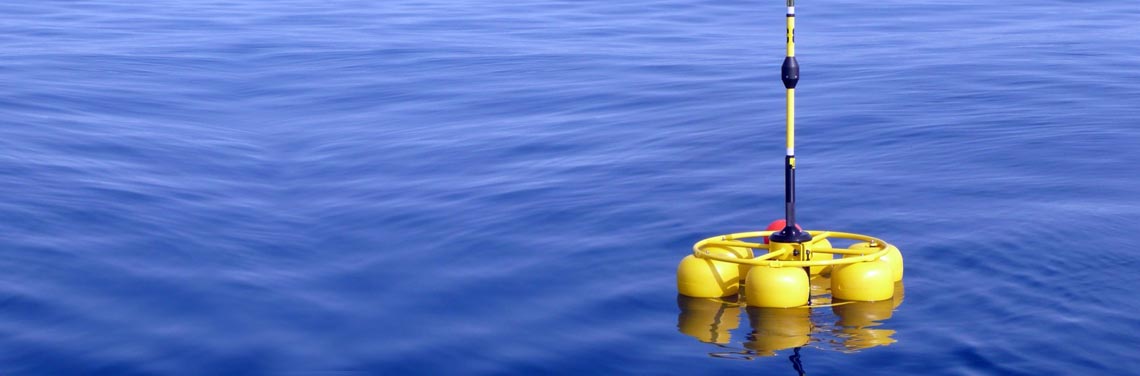

The portable GIB SAR is an underwater GPS tracking system: Black-box or distressed submarine positioning. By combining 4 buoys and a deck unit which can be installed either on a small boat or on a large vessel, ALSEAMAR has designed an accurate positioning system that is very easy to deploy and perfectly fitted for underwater positioning in both shallow and deep water, even with rough sea conditions.

Contact ALSEAMAR

by e-mail
Contact name
Éric de TRETAIGNE

Specifications

Length

2.5 m

Width

1 m

Weight

29 kg dry

Payload

Acoustic

Communications / Data links

RF, Iridium

Features

Very wide tracking area: up to 2 × 2 Nm with no calibration (fast deployment < 1 h)

Control Station

Real-time 3D tracking in longitude & latitude in D-GPS mode with metric accuracy & depth

Powerplant / Propulsion

Battery

Depth rating

20-600 m

Endurance mission duration

Several days

Status

In service with UK and French MoD and Royal Malaysian Navy for marine salvage operations

Applications

Detect and Locate:

  • submarines in distress
  • civil and military aircraft or helicopter black boxes
