SEAEXPLORER Gliders
Extended-Endurance, Multi-Mission Stealth Drone
Modular, Rechargeable Underwater Glider with Hybrid Navigation

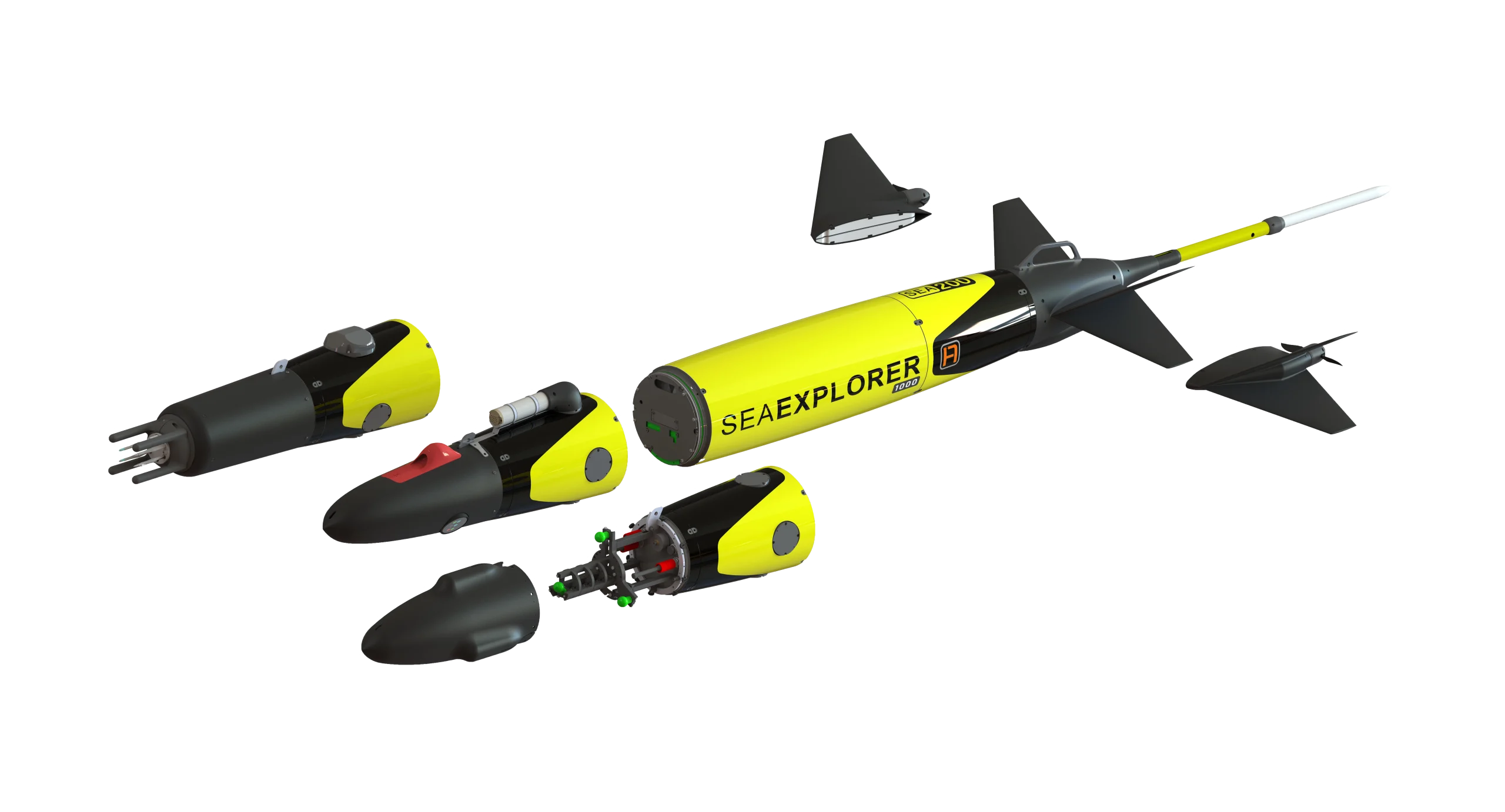

SEAEXPLORER gliders are designed into three parts:
Front: Payload Section
This part integrates the sensors that collect underwater data. Payloads are modular and can be interchanged, enabling sensors to be adapted to the needs of each mission. Each payload is compatible with all gliders of the SEAEXPLORER range.
Middle: Battery Section
Gliders can remain autonomously in the water for several months at a time. Its battery can be fully recharged in just a few hours, enabling it to be rapidly deployed again.
This part also incorporates a moving mass that moves forward or backward and horizontally to enable pitch and roll.
Rear: Navigation and Communication Section
This part includes the electronic navigation cards, the wings and the antenna for transmitting the data. SEAEXPLORER gliders can be equipped with propellers for horizontal navigation in shallow waters.
SEAEXPLORER Gliders Range
| SEAEXPLORER 200 | SEAEXPLORER 1000 | ||
| Single Battery | Double Battery | ||
| Max. depth | 200 m | 200 m | 1,000 m |
| Body Size (without antenna) | 2,200 mm x Ø 230 mm |
2,800 mm x Ø 230 mm | 2,000 mm x Ø 250 mm |
| Weight | 65 kg |
90 kg | 59 kg |
| Endurance at max. depth | 75 days/1,350 km |
135 days/2,500 km | 125 days/2,700 km |
SEAEXPLORER Gliders Range
SEAEXPLORER 200
| Max. depth | 200m |
| Body Size (without antenna) | Single Battery: 2.200 mm x Ø 230 mm Double Battery: 2.800 mm x Ø 230 mm |
| Weight | Single Battery: 65 kg Double Battery: 90 kg |
| Endurance at max. depth | Single Battery: 75 days/1.350 km Double Battery: 135 days/2.500 km |
SEAEXPLORER 1000
| Max. depth | 1000m |
| Body Size (without antenna) | 2.000 mm x Ø 250 mm |
| Weight | 59 kg |
| Endurance at max. depth | 125 days/2.700 km |
User-Friendly Data Collection and Piloting Interface

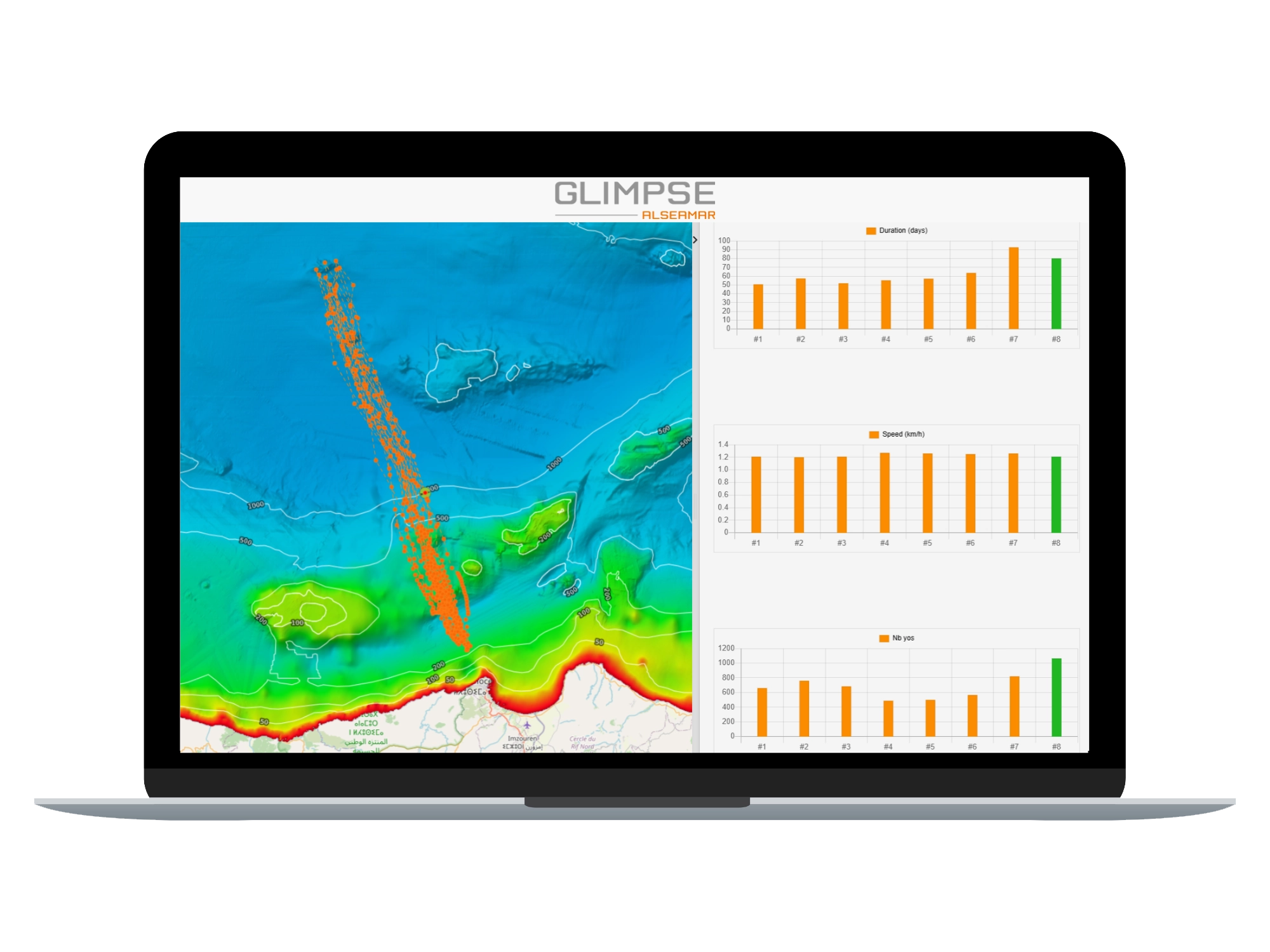

Developed by ALSEAMAR, GLIMPSE is an intuitive, user-friendly interface that helps scientists prepare and pilot their SEAEXPLORER missions, and easily analyze the data collected.
Plan and simulate missions with Smart Planning feature
Control SEAEXPLORER gliders missions in real time
Pilot several SEAEXPLORER gliders simultaneously
Model the data collected for scientific analysis
